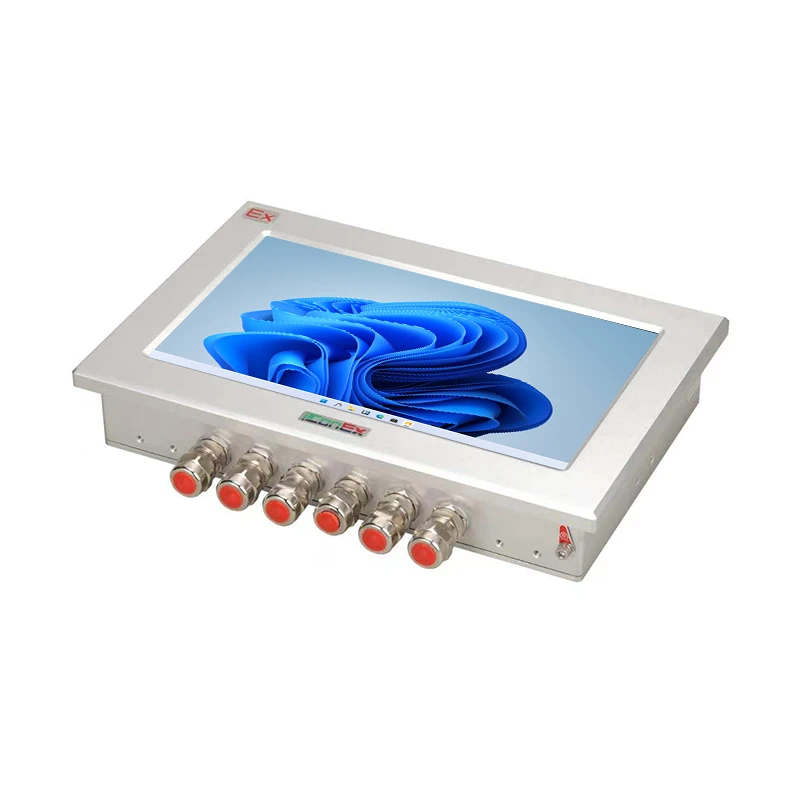

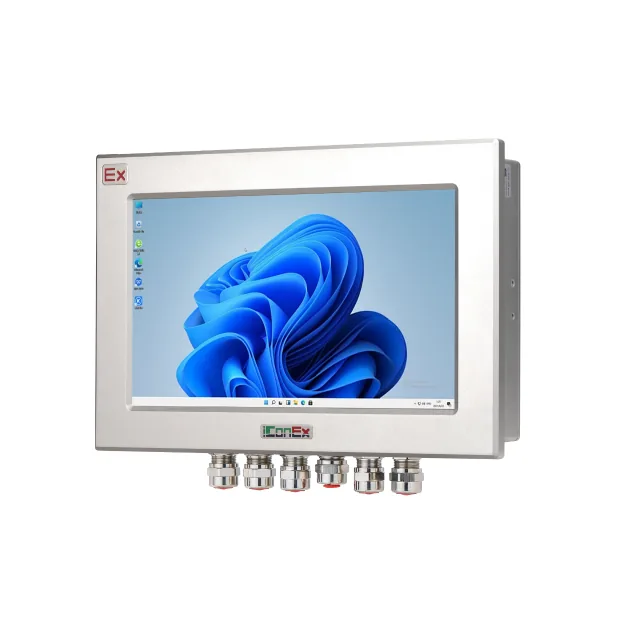

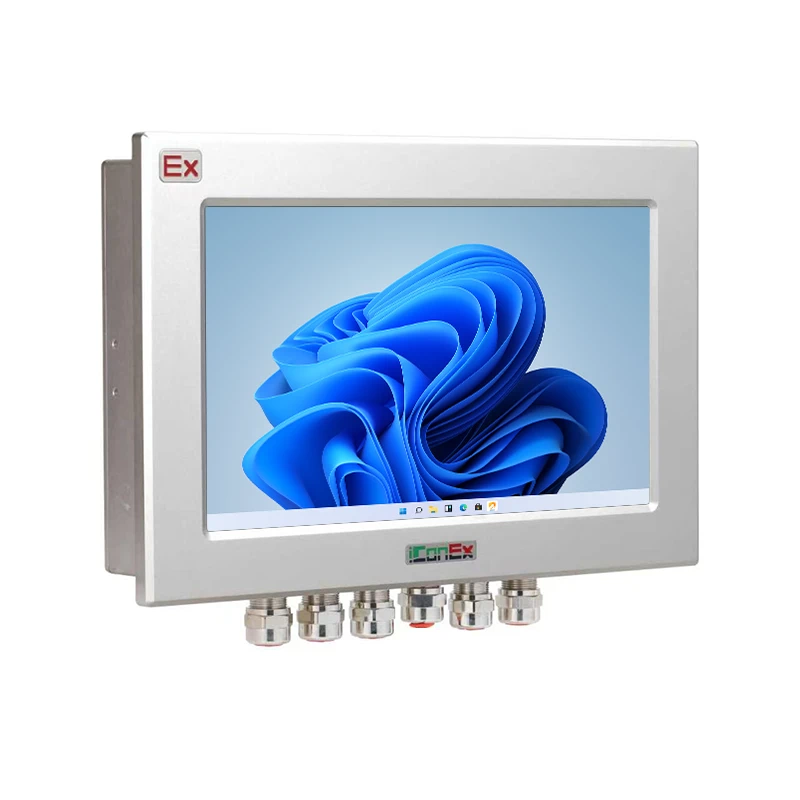

Explosion-Proof Industrial Panel PC

XY800_DR Series PC is an explosion-proof industrial computer designed for hazardous areas. It features touchscreen operation and can be connected to external explosion-proof keyboards and mice. It can be used for remote data acquisition, process visualization, and control. It is widely used in information and automation control systems for hazardous areas in the oil & gas, pharmaceutical, military, etc.

Features

● All-metal housing with integrated explosion-proof design.

● 10" to 22" multiple display sizes optional.

● ESD-protected touch screen that can be operated directly in hazardous areas.

● Processor, memory and hard disk are optional.

● Dual Ethernet ports provides redundancy connection.

● Low power consumption, fanless design, significantly reducing equipment failure rate.

● Industrial-grade design, IP66 for whole device, max. ambient temp. range: -40~60℃.

Specifications

XY800_10DRPC
  • Model
    XY800_10DRPC
  • Display type
    TFT_LCD backlight
  • Display size
    10.4"
  • Resolution
    1024*768
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    12VDC
  • Electrical interface
    4*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_12DRPC
  • Model
    XY800_12DRPC
  • Display type
    TFT_LCD backlight
  • Display size
    12.1"
  • Resolution
    1024*768
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    6*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_15DRPC
  • Model
    XY800_15DRPC
  • Display type
    TFT_LCD backlight
  • Display size
    15"
  • Resolution
    1024*768
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    6*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_17DRPC
  • Model
    XY800_17DRPC
  • Display type
    TFT_LCD backlight
  • Display size
    17"
  • Resolution
    1280*1024
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    6*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_19DRPC
  • Model
    XY800_19DRPC
  • Display type
    TFT_LCD backlight
  • Display size
    19"
  • Resolution
    1280*1024
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    8*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_15BDRPC
  • Model
    XY800_15BDRPC
  • Display type
    TFT_LCD backlight
  • Display size
    15.6"
  • Resolution
    1920*1080
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    6*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_19BDRPC
  • Model
    XY800_19BDRPC
  • Display type
    TFT_LCD backlight
  • Display size
    18.5"
  • Resolution
    1920*1080
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    8*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb
XY800_22BDRPC
  • Model
    XY800_22BDRPC
  • Display type
    TFT_LCD backlight
  • Display size
    21.5"
  • Resolution
    1920*1080
  • Brightness
    300 cd/m²（≥ 600 cd/m², ≥ 1000 cd/m² optional)
  • LCD lifespan
    50000hrs
  • Operation
    Touch, Anti-static surface / keyboard & mouse optional
  • CPU
    Intel Core i3 11th @4.1GHz Intel Core i5 11th @4.2GHz/13th@4.6GHz/12th@4.4GHz Intel Core i7 11th @4.7GHz/12th @4.7GHz Rockchip RK3588@2.5GHz( Supports Android OS only) optional
  • Memory
    8GB/16GB/32G/64GB optional
  • Storage
    32GB/64GB/128GB/256GB/512GB/1TB/2TB optional
  • Communication port
    2*RJ45,6*USB Device 3.0, 4*RS232, 1*RS485 optional
  • Support system
    Win 10 Enterprise LTSC 64-bit/Linux 64-bit optional/Android14.0 (Supports Rockchip only) (*Note: If you need to install Win7/Win10 Enterprise LTSC 1607 or below system versions, you can choose Core i5 6th model)
  • Ambient temp.
    NT: 0～50℃（LT: -20～60℃ / WT: -40～60℃ optional)
  • Storage temp.
    -40～70℃
  • Ambient humidity
    10～90 % RH (no condensation)
  • Rated power
    30W Max 100W
  • Voltage level
    220VAC or 110VDC/24VDC
  • Electrical interface
    8*M20x1.5H
  • Installation method
    Wall-mounted；Embedded
  • Cable Entry
    Bottom; Top; Rear
  • Protection level
    IP 66
  • ATEX
    II 2GD XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb ;Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • IECEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • CNEX
    XY800_7/10/10B/12/15/15BDR*****:Ex db ib IIB+H2 T6 Gb; Ex ib tb IIIC T80°C Db XY800_17/17B/19B/19/22BDR*****:Ex db ib IIB T6 Gb;Ex ib tb IIIC T80°C Db
  • EAC
    1 Ex db ib IIB T6 Gb; Ex ib tb IIIC T80°CDb

Product Enquiry

Related Products

Intrinsically Safe Barcode Scanner
Details
Fixed-Mount Code Reader
Details
Explosion-Proof Wireless Access Point
Details
Explosion-Proof Mobile Terminal
Details
