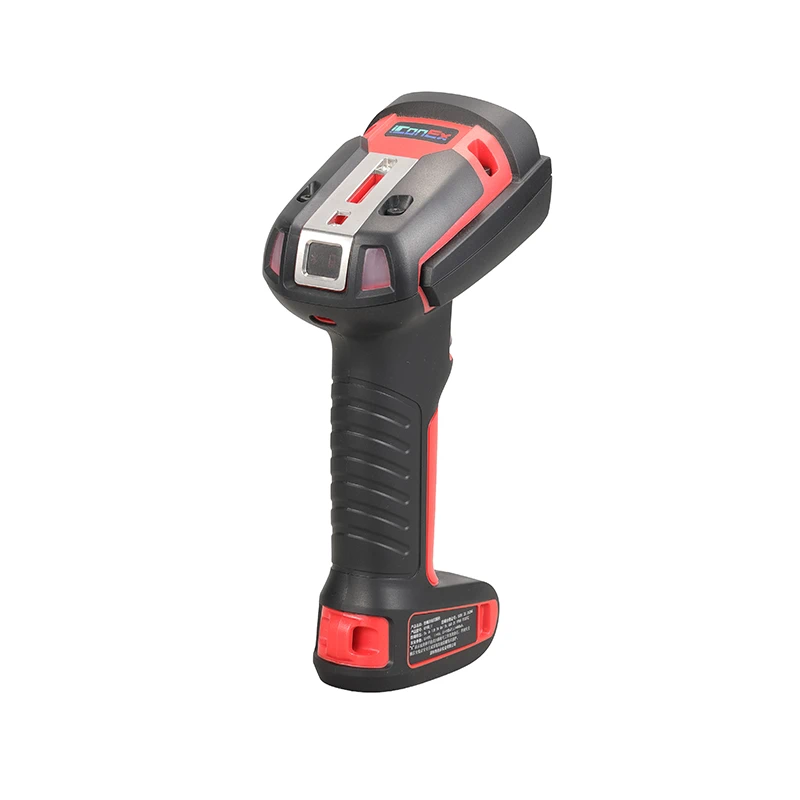

Wireless Handheld Barcode Scanner

iConEx XY100_II explosion-proof scanner is specially designed for various scanning work in harsh and hazardous environment. With customized body and redefining the reliability standard of the scanner, it can easily read almost all types of bar codes; its excellent lighting ability, clear laser aiming and extended depth of field can ensure maximum operating efficiency and is suitable for applications such as data collection and logistics management in hazardous areas.

Features

● Intrinsically safe explosion-proof designed for Zone 1, 21, wireless, with ATEX.

● Strong decoding capability, high accuracy, can read almost all types of barcodes easily.

● High-speed scanning, up to 500times/sec.

● Suitable for far-field scanning on 1D/2D barcodes.

● Can scan UPC at 2m and 100mil barcode at 24m.

● Support RS232, RS485, Modbus RTU, Modbus TCP, Profinet

● Industrial grade design, protection level IP66/65.

● Can be used in various harsh environments, including withstanding 3m drops, 7000 1-m rolls.

Specifications

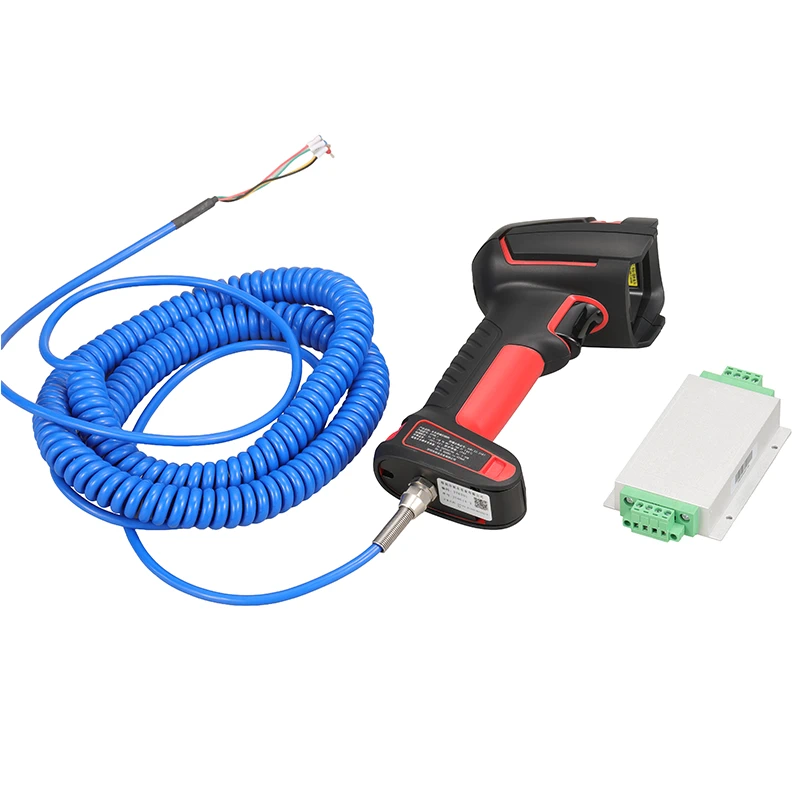

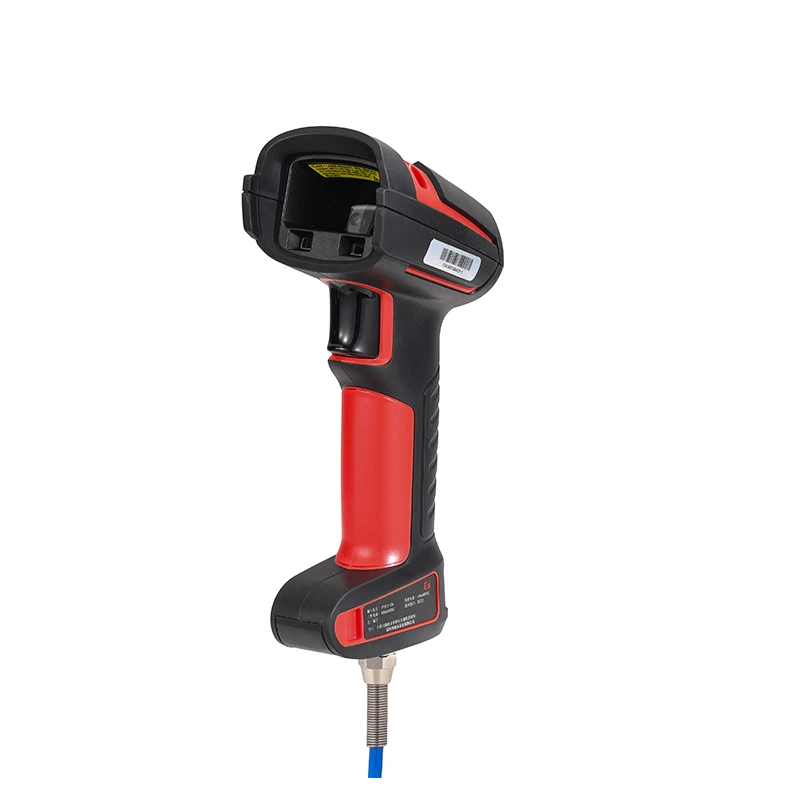

XY100_I (wired)
  • Model
    XY100_I (wired)
  • Type
    Explosion-proof barcode scanner
  • Scanning method
    2D image scanning (830*640 pixels)
  • Decoding capability
    Automatically recognizes all standard 1D barcodes and GS1, PDF417, MICROPDF, MaxiCode, DataMatrix, QRCode, UCC, EAN composite codes, postal codes and Aztec
  • Reading distance
    200mm / 500mm optional
  • Scanning angle
    ER focus: horizontal 31.6°; vertical 24.4°
  • Scanning speed
    Up to 200/500 scans per second
  • Wireless scanning
    100m line of sight; one communication base station supports wireless Bluetooth communication with 7 scanners
  • Host interface
    Serial port / RS232: ASCII protocol (American Standard Code for Information Interchange)Serial port / RS485: ASCII protocol (American Standard Code for Information Interchange)Serial port / RS485：Modbus-RTU、PROFIBUS_DPNetwork port / RJ45：Industrial Ethernet MODBUS_TCP (network cable, optical fiber)Network port / RJ45：Industrial Ethernet PROFINET (network cable, optical fiber)
  • Power
    RS232：5VDC，RS485：24VDC，RJ45：24VDC
  • Operating temperature
    XY100_I：-30 - 55°C
  • Storage temperature
    -40-70°C
  • Ambient humidity
    0 - 95% RH (non-condensing)
  • Protection level
    IP65/IP66
  • Explosion-proof mark
    XY100_I:Ex ib IIB T6 Gb / Ex ibD 21 T85°C

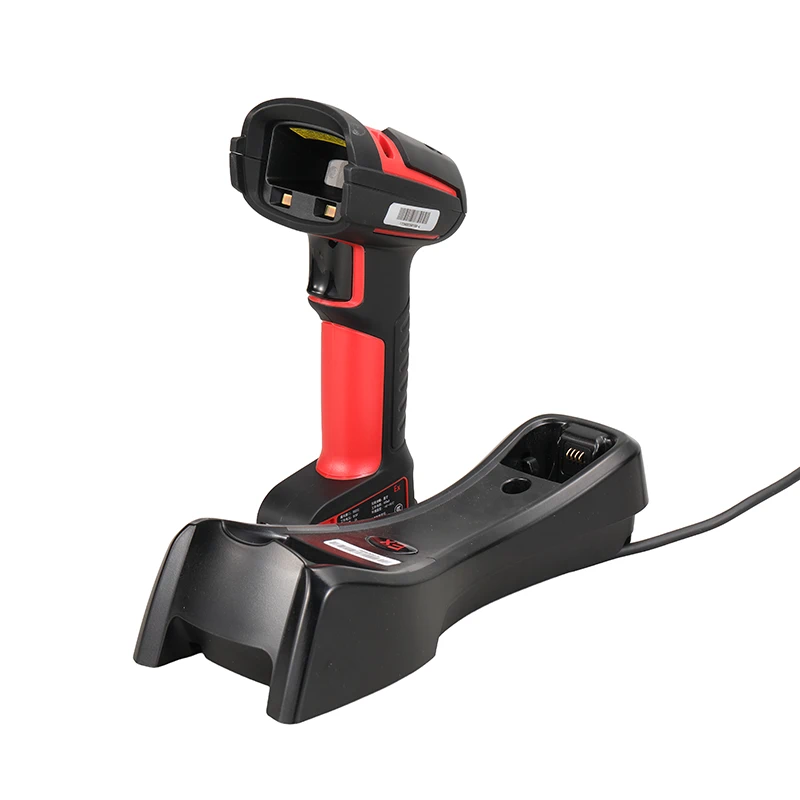

XY100_II (wireless)
  • Model
    XY100_II (wireless)
  • Type
    Explosion-proof barcode scanner
  • Scanning method
    2D image scanning (830*640 pixels)
  • Decoding capability
    Automatically recognizes all standard 1D barcodes and GS1, PDF417, MICROPDF, MaxiCode, DataMatrix, QRCode, UCC, EAN composite codes, postal codes and Aztec
  • Reading distance
    200mm / 500mm optional
  • Scanning angle
    ER focus: horizontal 31.6°; vertical 24.4°
  • Scanning speed
    Up to 200/500 scans per second
  • Wireless scanning
    100m line of sight; one communication base station supports wireless Bluetooth communication with 7 scanners
  • Host interface
    Serial port / RS232: ASCII protocol (American Standard Code for Information Interchange)Serial port / RS485: ASCII protocol (American Standard Code for Information Interchange)Serial port / RS485：Modbus-RTU、PROFIBUS_DPNetwork port / RJ45：Industrial Ethernet MODBUS_TCP (network cable, optical fiber)Network port / RJ45：Industrial Ethernet PROFINET (network cable, optical fiber)
  • Power
    RS232：5VDC，RS485：24VDC，RJ45：24VDC
  • Operating temperature
    XY100_II：-40 - 60°C
  • Storage temperature
    -40-70°C
  • Ambient humidity
    0 - 95% RH (non-condensing)
  • Protection level
    IP65/IP66
  • Explosion-proof mark
    XY100_II: Ex ib IIB T4 Gb / Ex ibD 21 T130°C
