Fixed-Mount Code Reader

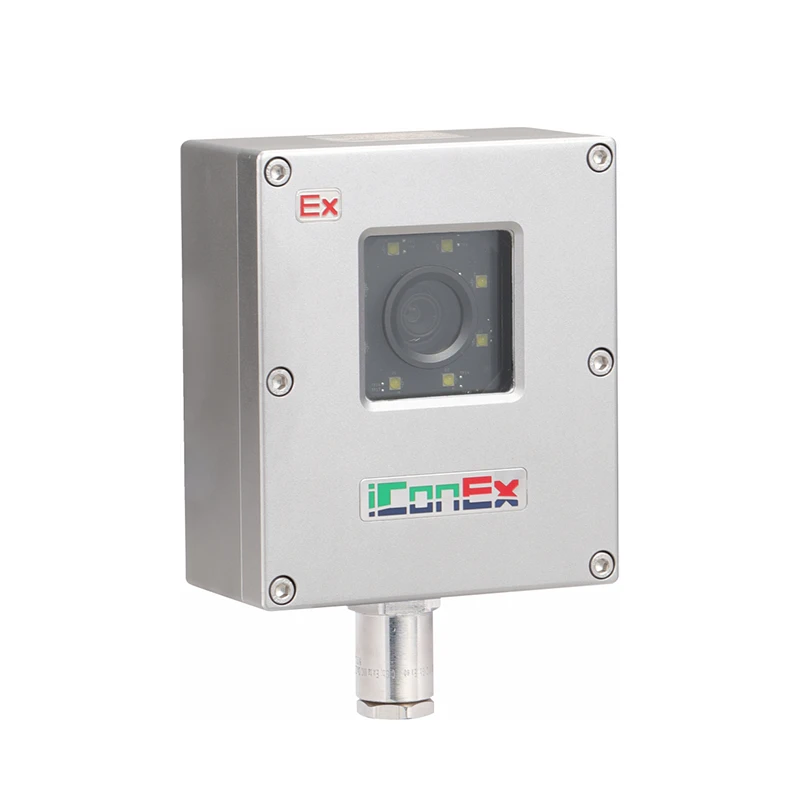

iConEx XYExScanner explosion-proof code scanner is specially designed to meet various scanning tasks in an harsh or hazardous environment; is specially designed for various scanning work in harsh and hazardous environment. With customized body and redefining the reliability standard of the scanner, it can easily read almost all types of bar codes. Advanced lighting design provides exceptional sensitivity and motion tolerance when capturing image information for barcode interpretation; ideal for data collection on production equipment in hazardous areas or on fast-moving production lines.

Features

● Explosion-proof and fixed-mounted designed for Zone 1, 21.

● High-speed omnidirectional scanning for 1D/2D barcodes, postal codes, and OCR.

● Can read multiple barcodes simultaneously.

● Design to prevent electrical surge interference.

● Visual/audible alerts,bright LED indicators and buzzer feedback.

● Device robust design in IP66 standard.

Specifications

XYExScanner_C
  • Model
    XYExScanner_C
  • Communication interface
    RS232/RS485/USB
  • Communication protocol
    ASCII/Modbus RTU
  • Scanning method
    2D image scanning (960*640 pixels)
  • Barcode type
    Code39, Code93, Code128. ITF14, ITF25. CodeBar, EAN, UPCA, UPCE, QR, DMI
  • Recognition distance
    100mm
  • Reading ability
    1D and 2D
  • Scanning speed
    60 frames/s.
  • Trigger method
    Automatic/Instructions/IO
  • Digital I/O
    4 bidirectional I/O, non isolated(Default:2 input, 2 output)
  • Ambient temp.
    - 40 ~ 60℃
  • Storage temp.
    - 40 ~ 70℃
  • Ambient humidity
    0-95% relative humidity, no condensation at 50 ℃
  • Rated voltage
    5V DC±10%
  • Rated current
    Max. 500mA
  • Electrical interface
    1*M20x1.5H
  • Signal transmission
    USB/RS232≤10M ； RS485≤500M
  • Cable length
    3m
  • Protection level
    IP66
  • Ex-proof mark
    Ex db IIC T6 Gb; Ex tb IIIC T80°C Db;
  • Certificate
    CNEX
XYExScanner_M1
  • Model
    XYExScanner_M1
  • Communication interface
    RJ45（Ethernet）
  • Communication protocol
    Modbus TCP/Ethernet IP/Profinet/MELSEC/FTP/HTTP
  • Scanning method
    2D image scanning (960*640 pixels)
  • Barcode type
    Code39, Code93, Code128. ITF14, ITF25. CodeBar, EAN, UPCA, UPCE, QR, DMI
  • Recognition distance
    40~120mm
  • Reading ability
    1D and 2D
  • Scanning speed
    60 frames/s.
  • Trigger method
    Automatic/Instructions/IO
  • Digital I/O
    4 bidirectional I/O, non isolated(Default:2 input, 2 output)
  • Ambient temp.
    - 40 ~ 60℃
  • Storage temp.
    - 40 ~ 70℃
  • Ambient humidity
    0-95% relative humidity, no condensation at 50 ℃
  • Rated voltage
    24V DC±10%
  • Rated current
    Max. 500mA
  • Electrical interface
    1*M20x1.5H
  • Signal transmission
    ≤50M
  • Cable length
    3m（customizable：3~50m）
  • Protection level
    IP66
  • Ex-proof mark
    Ex db IIC T6 Gb; Ex tb IIIC T80°C Db;
  • Certificate
    CNEX
XYExScanner_M2
  • Model
    XYExScanner_M2
  • Communication interface
    RJ45（Ethernet）
  • Communication protocol
    Modbus TCP/Ethernet IP/Profinet/MELSEC/FTP/HTTP
  • Scanning method
    2D image scanning (1408*1024)
  • Barcode type
    Code39, Code93, Code128. ITF14, ITF25. CodeBar, EAN, UPCA, UPCE, QR, DMI
  • Recognition distance
    300~800mm
  • Reading ability
    1D and 2D (Can read multiple barcodes at once）
  • Scanning speed
    84 frames/s.
  • Trigger method
    Instructions/IO
  • Digital I/O
    4 bidirectional I/O, non isolated(Default:2 input, 2 output)
  • Ambient temp.
    - 40 ~ 60℃
  • Storage temp.
    - 40 ~ 70℃
  • Ambient humidity
    0-95% relative humidity, no condensation at 50 ℃
  • Rated voltage
    24V DC±10%
  • Rated current
    Max. 1000mA
  • Electrical interface
    1*M20x1.5H
  • Signal transmission
    ≤50M
  • Cable length
    3m（customizable：3~50m）
  • Protection level
    IP66
  • Ex-proof mark
    Ex db IIC T6 Gb; Ex tb IIIC T80°C Db;
  • Certificate
    CNEX
XYExScanner_M3
  • Model
    XYExScanner_M3
  • Communication interface
    RJ45（Ethernet）
  • Communication protocol
    Modbus TCP/Ethernet IP/Profinet/MELSEC/FTP/HTTP
  • Scanning method
    2D image scanning (1408*1024)
  • Barcode type
    Code39, Code93, Code128. ITF14, ITF25. CodeBar, EAN, UPCA, UPCE, QR, DMI
  • Recognition distance
    300~2000mm
  • Reading ability
    1D and 2D (Can read multiple barcodes at once）
  • Scanning speed
    90 frames/s.
  • Trigger method
    Instructions/IO
  • Digital I/O
    4 bidirectional I/O, non isolated(Default:2 input, 2 output)
  • Ambient temp.
    - 40 ~ 60℃
  • Storage temp.
    - 40 ~ 70℃
  • Ambient humidity
    0-95% relative humidity, no condensation at 50 ℃
  • Rated voltage
    24V DC±10%
  • Rated current
    Max. 1000mA
  • Electrical interface
    2*M20x1.5H
  • Signal transmission
    ≤50M
  • Cable length
    3m（customizable：3~50m）
  • Protection level
    IP66
  • Ex-proof mark
    Ex db IIC T6 Gb; Ex tb IIIC T80°C Db;
  • Certificate
    CNEX
