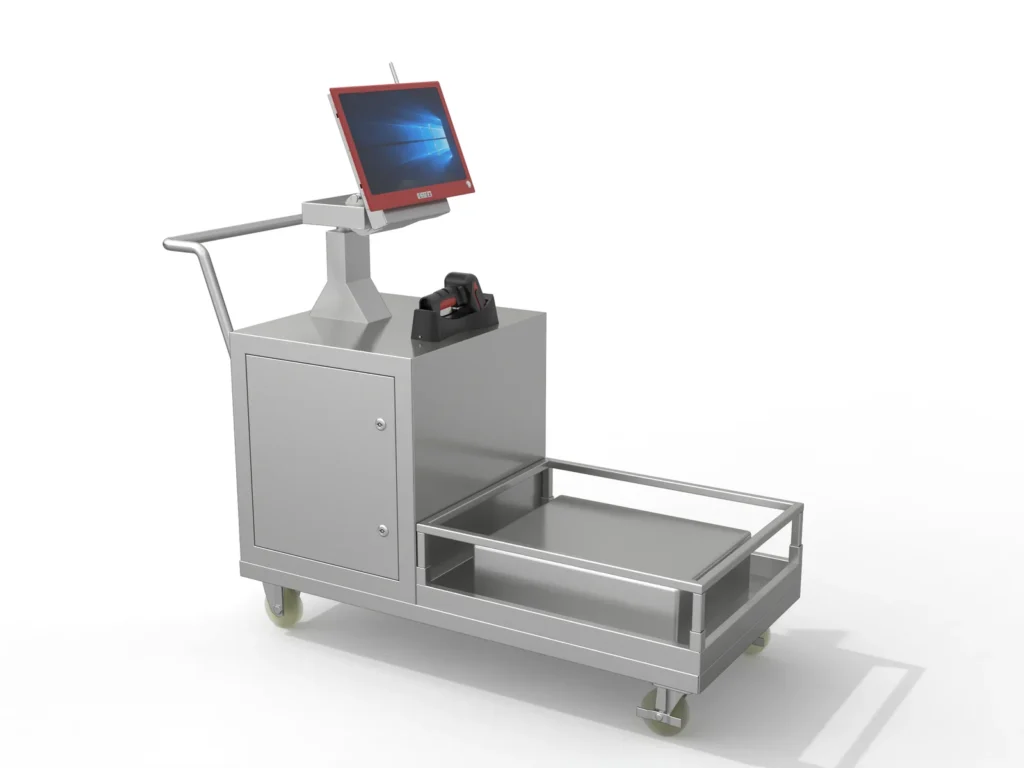

Mobile Batching Cart

The XY-MDS mobile batching cart combines a touch terminal, electronic scale, wireless scanner and mobile power supply on one trolley, connecting to the production system over Wi-Fi.

Features

● Mobile trolley that follows the dosing station

● Weighing, scanning and instruction delivery in one operation

● Formulas issued by work order, with charging error prevention and tolerance alarms

● Weighing data returned to MES / WMS in real time

Specifications

  • Model
    XY-MDS / Ex 30 D
  • Ex / Fx
    Ex: explosion-proof; Fx: non-explosion-proof
  • Weighing scales range
    30, 60, 120, 150 (KG)
  • Working mode
    D Off-line (HMI), M On-line (PC)
  • Display type
    15.6-inch TFT LCD
  • Operation mode
    Touch panel
  • Measuring device
    Weighing scale
  • Measuring accuracy
    15Kg: calibration value 2g; display accuracy 0.5g; min. weighing 40g 30Kg: calibration value 5g; display accuracy 1g; min. weighing 100g 60Kg: calibration value 10g; display accuracy 2g; min. weighing 200g 120Kg: calibration value 20g; display accuracy 5g; min. weighing 400g 150Kg: calibration value 50g; display accuracy 5g; min. weighing 1Kg
  • Error prevention system
    Support label review and error prevention
  • System interface
    WEBAPI / can be connected to MES
  • Communication interface
    WIFI
  • Recharge power supply
    AC220V / AC110V
